Pull-Out Basket Sizes: Cabinet Measurement & Fit Guide
The right pull-out basket size is determined by the cabinet’s usable internal space and the selected runner system—not the nominal cabinet width alone. Before ordering, confirm the model-specific installation drawing, mounting clearance and door arrangement.
Nominal cabinet width versus usable opening
A cabinet described as “800 mm” may refer to its outside width. Side panels, face frames, hinges and fittings reduce the space available inside. Two cabinets sold with the same nominal width can therefore need different basket sizes.
Do not apply one universal subtraction to choose a basket. The required allowance depends on whether the runners are side-mounted, bottom-mounted or integrated into a frame. Dimensions shown on a model drawing take priority over a generic size chart.
Five measurements to send with your inquiry
| Measurement | What to record |
|---|---|
| Clear internal width | Measure between the inside cabinet surfaces at the mounting position; also note any narrower face-frame opening. |
| Usable depth | Measure the available depth along the installation path. Mark pipes, back panels and other obstructions. |
| Usable height | Allow space for the basket, its contents and the mechanism. Note shelves, rails and plumbing above it. |
| Door opening | Record the clear opening with the door in its working position, including hinge intrusion and nearby handles. |
| Mounting arrangement | Specify side or bottom mounting and whether the basket connects to the door. Include panel thickness and a drawing. |
Match the dimensions to the product family
- Drawer baskets: confirm runner clearance, usable width and the height needed for dishes or other contents.
- Seasoning pull-out baskets: check the narrow opening, bottle height and runner or frame mounting positions.
- Magic corner units: also provide the opening direction and a plan view showing the blind side and the mechanism’s travel area.
Choose a layout, then confirm the model
These catalog examples show different storage layouts, not guaranteed matches for your cabinet. Compare the installation drawing with your measurements before choosing.

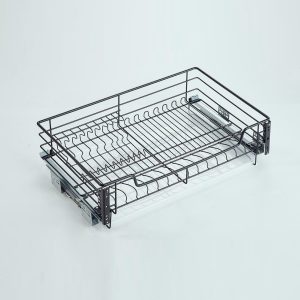

- DB05-800C drawer basket — compare a drawer-style layout.
- 7375 seasoning pull-out — compare bottle and cutting-board organization.
- Corner unit 04 — compare a blind-corner pull-out; read the corner selection guide before treating it as a substitute for a rotating unit.
Ask GST to check your cabinet drawing. You can change the product type in the form.
Confirm fit before a bulk order
- Send your cabinet drawing with dimensions in millimetres and identify the intended basket model.
- Compare the model’s installation dimensions with your cabinet, not only the basket’s outside dimensions.
- Agree on runner type, closing function, mounting hardware and the supplied components.
- Review a sample installation when introducing a new cabinet design before approving bulk production.
Frequently asked questions
Will any “800 mm basket” fit my 800 mm cabinet?
No. The label may describe a compatible nominal cabinet rather than the actual basket width. Confirm the clear internal opening and required mounting allowance against the exact model drawing.
Can I use the same size chart for different slide systems?
Not without checking. Different runners and frames can require different clearances. Keep the basket, runner and installation drawing together as one specified assembly.
What if I only have an existing cabinet, not a drawing?
Send photos with the door open, the five measurements above and the model reference if available. Include close-up photos of hinges and obstructions so the required checks are clear.
Need help matching a basket to your cabinet?
Send GST your clear dimensions, cabinet photos or drawings, destination country and quantity per model. We will discuss the model options and quote privately; fit and commercial terms must be confirmed for your project.
